BRIDNA BM2400 PRO 2400W Balcony ESS with LiFePO4 Battery for Home Solar Storage
Nominal Output Power (On-grid): 0.8kW
Max. Output Power (On-grid): 2.4kW

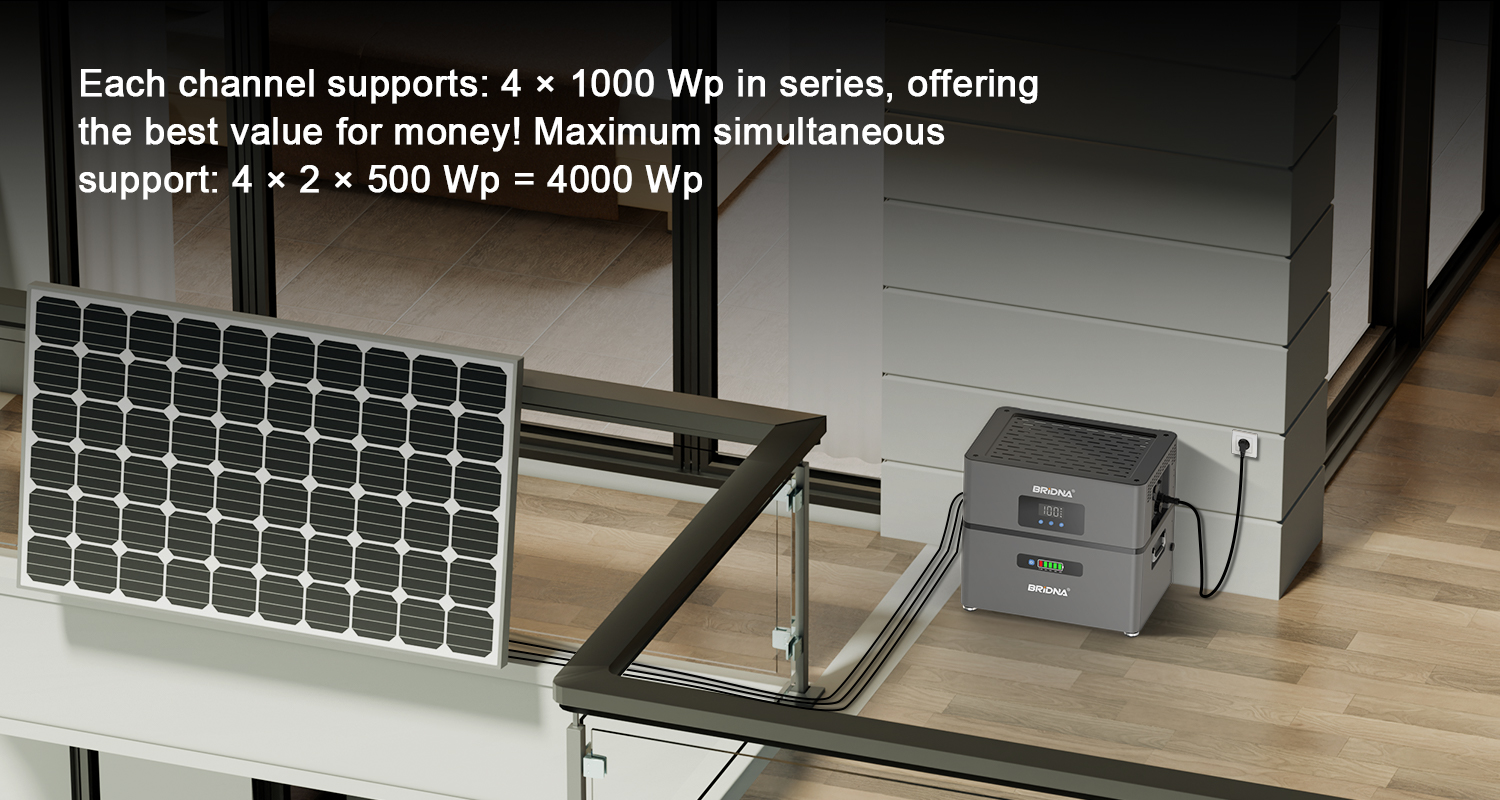

Solar Input: 4*PV18~60V 1000Wp Max (4000Wp in total)
Wireless parallel connection for a scalable home energy system
Flexible multi-unit setup
AC-coupled solar compatibility
Peak-valley energy optimization
Plug & play installation
Al-based energy management
Phase Detection







| AC Output (On-Grid) | |
| Nominal Output Power | 0.8kW |
| Nominal Output Current | 3.48A |
| Max. Output Power | 2.4kW |
| Max. Output Current | 10.43A |
| Nominal Output Voltage | 230V |
| Nominal Grid Erequency | 50Hz±5% |
| AC Input | |
| AC Input Charging | AC230V 2400W Max |
| Solar Input Charging |
4*PV18~60V 1000Wp Max (4000Wp in total)
|
|
Efficiency
|
|
|
Inverter Efficiency
|
≥90%
|
|
MPPT Efficiency
|
≥97%
|
|
Battery Conversion Efficiency
|
≥85%
|
| AC Output (Off-Grid) | |
| Nominal Output Power | 2.4kW |
| Peak Output Current (1 Second) | 10.43A |
| Norminal Output Voltage | 230V |
| Norminal Output Frenquency | 50Hz±5% |
| Total Voltage Harmonic Distortion | THDv<3% |
| Disruption Time of Backup Switch | ≤10MS |
| Battery Data | |
|
Main Unit Capacity
|
No Batter
|
| Battery Module Capacity | 2400Wh |

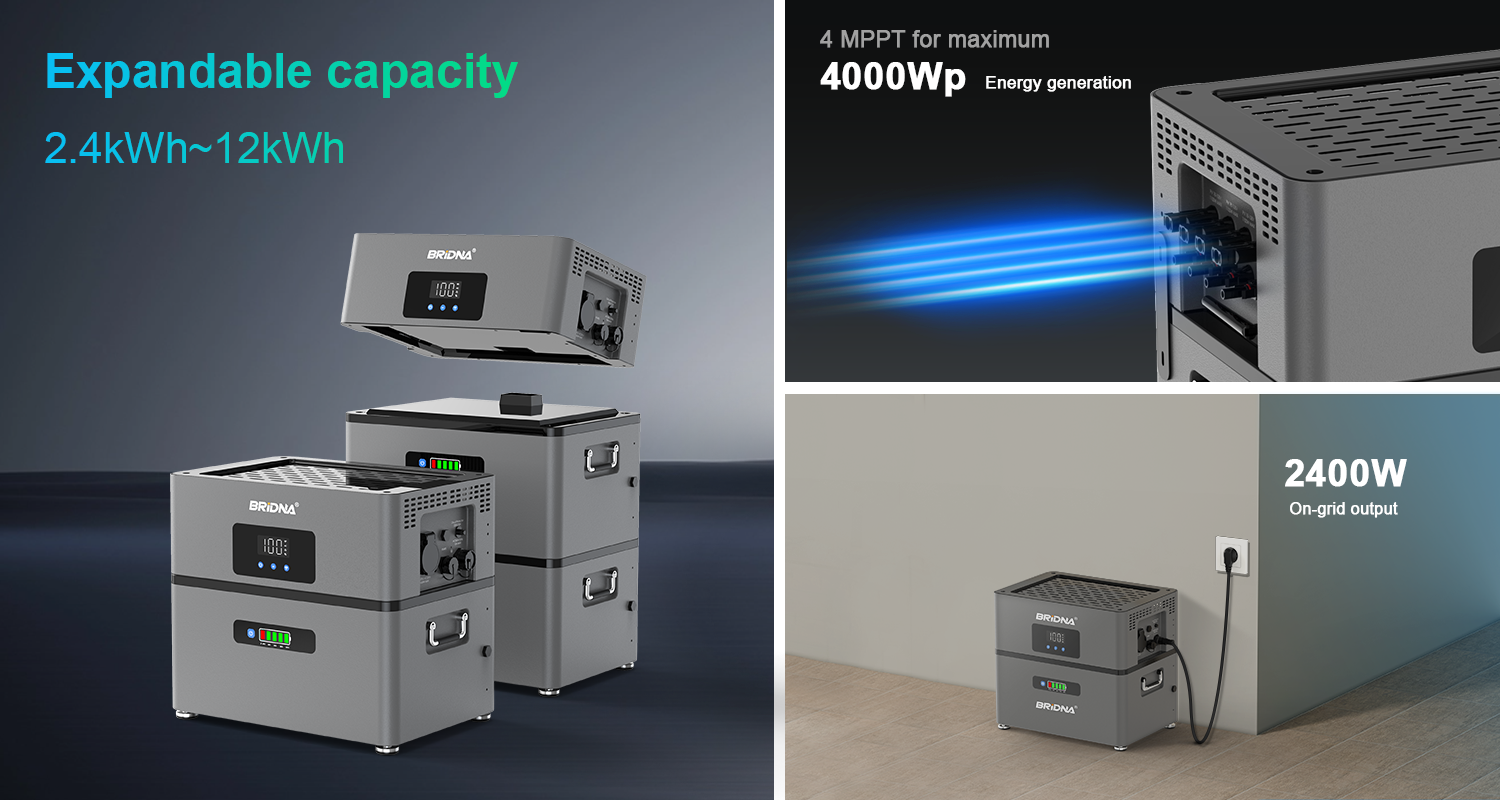

| Number of Modules per Main Unit | 1~5pcs |
| Nominal Voltage of Battery Module | DC48V |

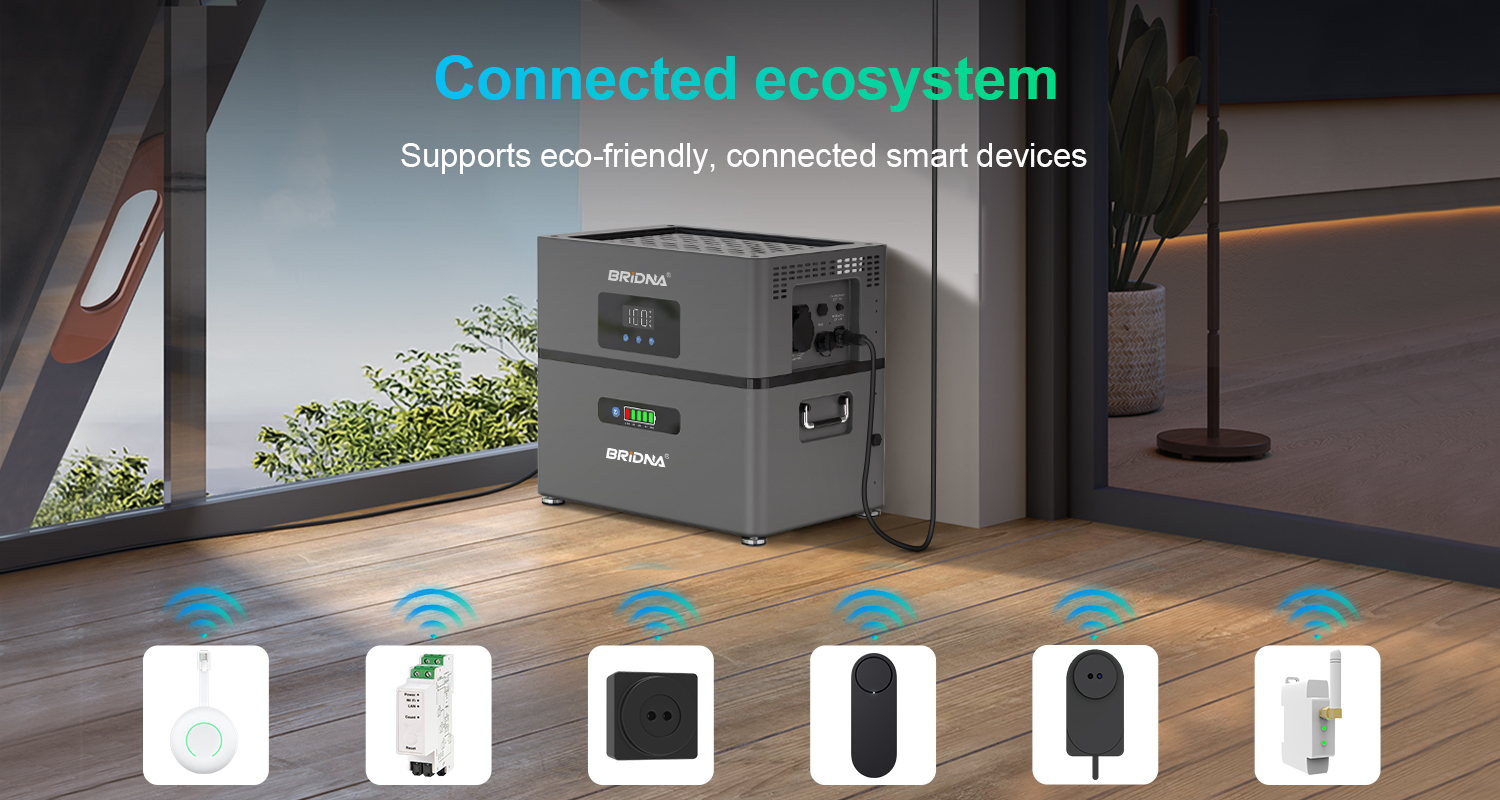

| Open Ecosystem Intergration Support | |
| Matching Ecological Products |

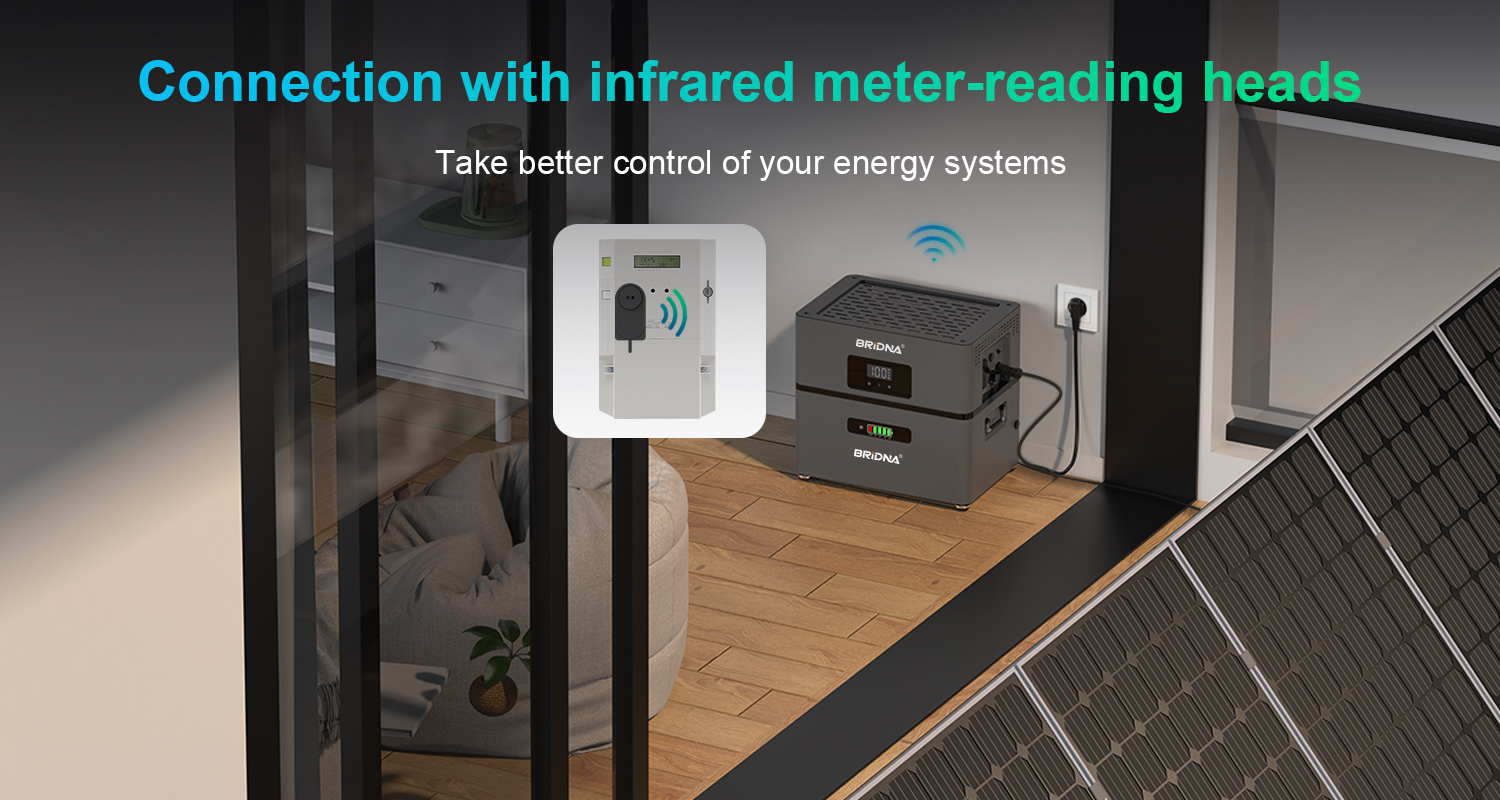

Smart Meter, Smart Plug, Infrared Meter
|
| Third-party Ecological Prducts |
Shelly smart meter, Shelly smart plug, Shelly relay,

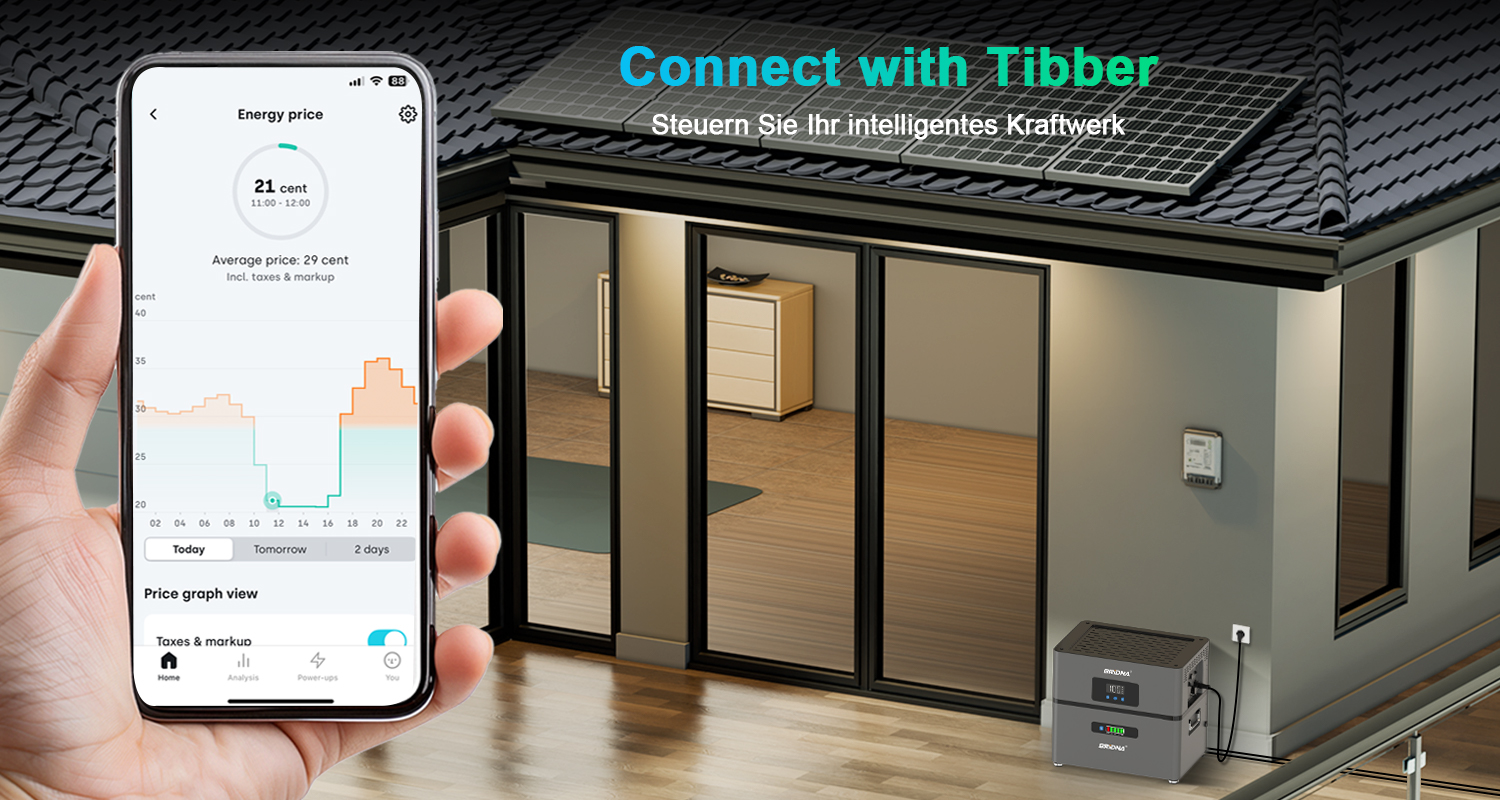

Tibber Pulse infrared meter, Tibber dynamic electricity price direct acquisition,
EverHome smart meter, HomeWizard P1 Meter
|
| General Data | |
|
Dimensions (L*W*H)
|
Main Unit: 440×305×165mm Extra Battery: 440×305×220mm |
|
N.W.
|
Main Unit: ≈14.215kg
Battery Pack: ≈25.305kg
|
|
G.W.
|
Main Unit: ≈17.18kg
Battery Pack: ≈27.77kg
|
|
Storage Temperature Range
|
-20℃~60℃
|
|
Operating Temperature Range
|
-20℃~55℃
|
|
Relative Humidity Range
|
0-60HR
|
|
Cooling
|
Natural Cooling
|
|
Standby Power Consumption
|
≤16W
|
|
Ingress Protection Rating
|
IP65
|
|
Display
|
LED+APP
|
|
Communication
|
WiFi/BT/Ethernet
|
|
Standard Compliance
|
|
|
EMC+LVD
|
EN62109-1/-2/2100/65EU/CE-EMC+LVD
|
|
Feed Standard
|
VDE4105:2018 VDE 0124:2020/G98:2022/EN50549-1:2019/EN50549-10:2022
|




1. Who is the balcony energy storage system suitable for?
The balcony energy storage system is ideal for apartments, rental properties, small homes, and households with existing balcony solar panels. With no complicated wiring required, the plug-and-play design makes it easy to maximize the use of balconies, terraces, and other limited spaces while helping reduce electricity costs for daily home appliances.
In addition, the system also supports off-grid applications and can serve as a reliable home backup power source during outages. Its portable design also makes it suitable for outdoor use, such as camping, RV trips, and other outdoor activities, providing flexible power support across multiple high-frequency usage scenarios.

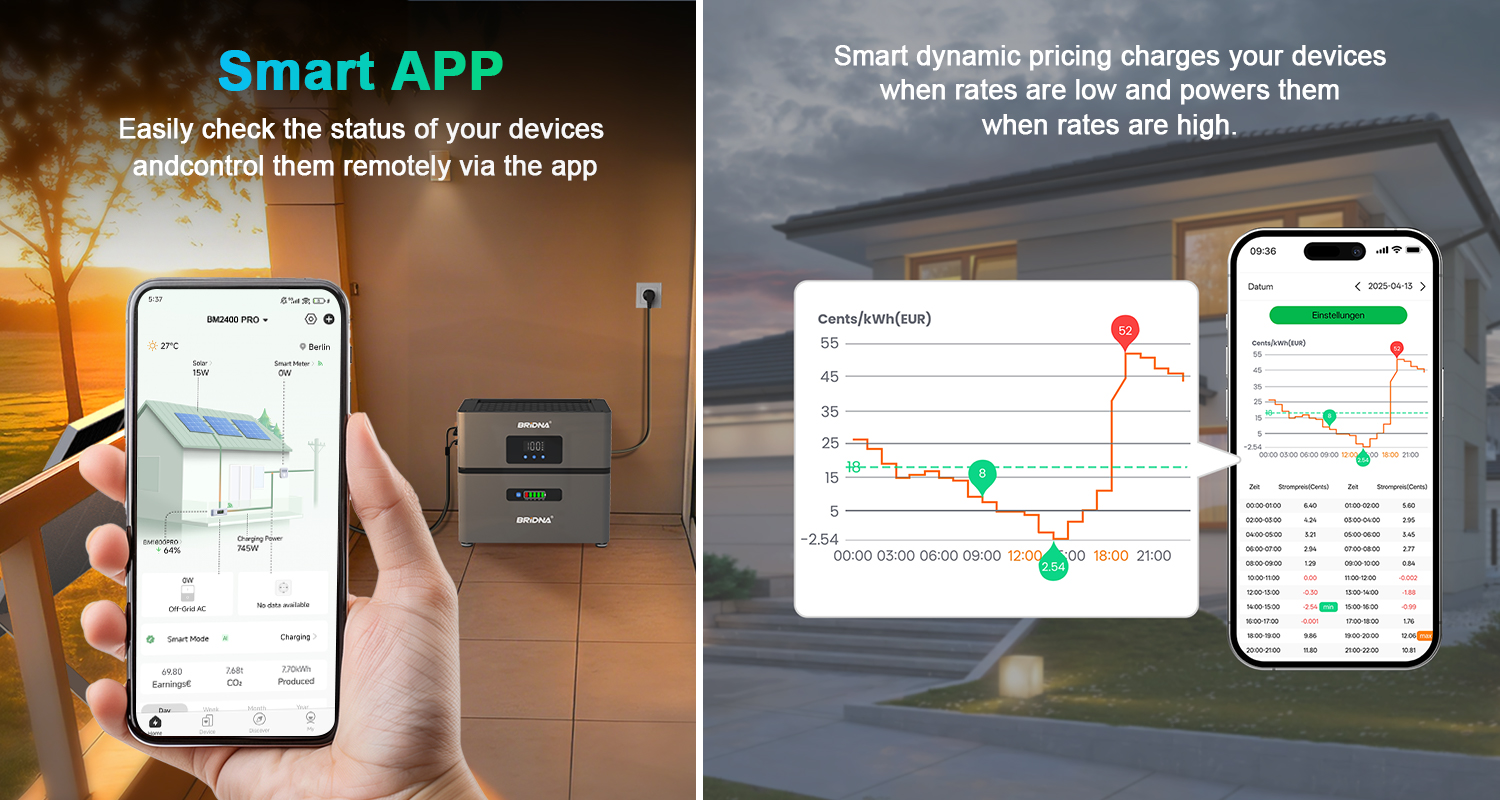

2. How does the balcony energy storage system help reduce electricity bills?
The system stores excess solar energy generated during the day and releases it at night or during peak electricity pricing periods. This greatly improves self-consumption efficiency and can significantly reduce reliance on grid electricity, leading to long-term savings on energy bills.
3. Is the installation process complicated?
No installation is required. This product features a plug-and-play design, allowing users to start using it immediately without the need for professional installers or construction work.
4. Is the balcony energy storage system safe? How long is its lifespan?
The product uses LiFePO4 (Lithium Iron Phosphate) batteries, offering high safety performance, resistance to extreme temperatures. High-quality batteries can achieve over 6,000 charge cycles and provide stable performance for more than 10 years.
5. Do you support customized production services?
Yes. As a direct manufacturer, we provide OEM and private-label production services for global brands and partners. If you have customization requirements, please contact our customer service team for more detailed information.
