Product Advantage Overview

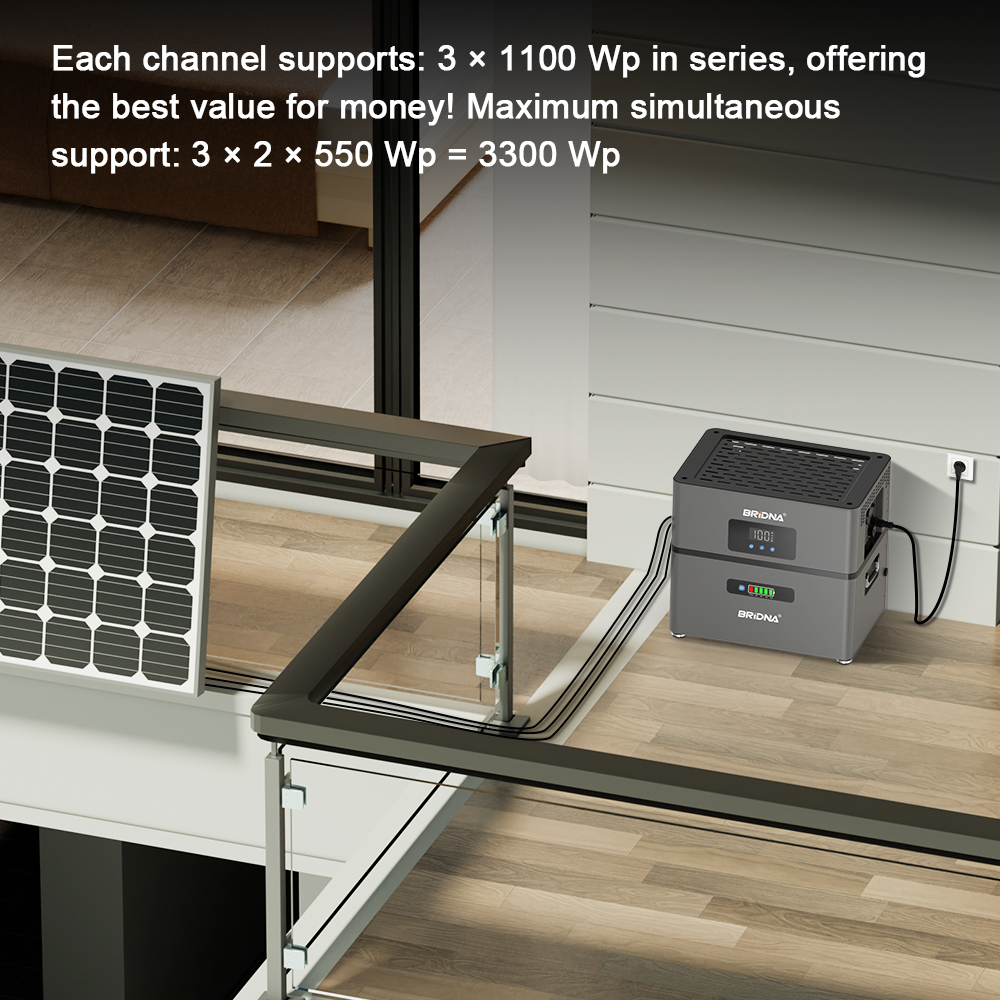

In residential balcony, rooftop and small distributed photovoltaic systems, the maximum access capacity of solar panels directly determines the power generation efficiency and economic return of your energy storage system. BRIDNA all-in-one energy storage power station is equipped with high-compatibility PV access design, each solar channel supports up to 3 pieces of 1100W solar panels connected in series, the device can simultaneously connect two groups of photovoltaic arrays with 3 pieces of 550W panels each, realizing a maximum total PV access power of 3300W. This flexible and high-power photovoltaic access solution fully taps the power generation potential of residential solar resources, brings higher solar self-consumption rate and better cost performance for household energy storage users.

Flexible PV Series Connection Configuration, Diversified Installation Adaptation

1. Single Channel: Support Up to 3 × 1100W Panels in Series

Each independent MPPT photovoltaic channel of BRIDNA energy storage device allows up to three 1100W high-power solar panels to be connected in series. The wide PV voltage design adapts to high-voltage series connection schemes of large-power monocrystalline and polycrystalline solar modules currently popular in the market. For large-area rooftop and courtyard photovoltaic layouts, fewer wiring circuits can realize large-capacity solar access, effectively reducing the construction difficulty of wiring arrangement, lowering cable cost and construction labor expense, and making the whole photovoltaic project more cost-effective.

2. Dual Channel PV Input, Max 3300W Total Solar Access

The energy storage station adopts dual independent MPPT solar input channels, which can simultaneously connect two groups of photovoltaic arrays configured with 3 pieces of 550W solar panels respectively, with the maximum total photovoltaic access power reaching 3300W. The two channels operate independently without mutual interference, which can flexibly match segmented photovoltaic layouts such as balcony double-sided installation, east-west roof staggered arrangement. Even if the two groups of solar panels are shaded unevenly, each MPPT channel can independently track the maximum power point, avoiding the overall power generation drop caused by local shading, and greatly improving the actual power generation efficiency of the whole photovoltaic system.

Core Value of High-Power PV Access Design

1. Improve Overall Return on Investment of Household PV

With up to 3300W large-capacity solar access capacity, users can install sufficient solar panels according to the available installation area of the house. The system converts more sunlight into electric energy stored in the built-in lithium battery pack, which is preferentially used for household daily electricity consumption. It can greatly reduce the purchase of electricity from the municipal grid, realize peak electricity avoidance and electricity bill saving, and shorten the investment payback cycle of photovoltaic energy storage projects.

2. Flexible Layout to Adapt to Various Household Installation Scenarios

Whether it is balcony distributed photovoltaic, villa rooftop large-area power generation, garden sunshade integrated solar layout or small off-grid self-built house power supply, BRIDNA energy storage power station can flexibly match different photovoltaic layout schemes. The high-voltage series connection design reduces the number of wiring loops, makes the on-site construction neater and safer, and effectively avoids safety hazards such as line overload and heating caused by multi-group low-voltage parallel connection of solar panels.

3. Independent Dual MPPT Technology Resists Shading Loss

Two sets of independent MPPT maximum power point tracking modules perform real-time intelligent regulation on two groups of photovoltaic arrays separately. When part of the solar panels are blocked by buildings, trees or sundries, the power generation efficiency of one channel will not drag down the other group of photovoltaic equipment, ensuring the stable power output of the whole system to the greatest extent, and maximizing the daily power generation of household photovoltaic power stations.

4. Lower Overall Engineering Cost & Higher Cost Performance

Supporting series connection of high-power solar panels greatly reduces the demand for wire quantity and combiner box accessories. Home installers can complete the access of large-capacity photovoltaic systems with simpler wiring schemes, cutting material and construction costs. For end users, more solar power can be stored and utilized with limited installation space, letting every square meter of photovoltaic installation area create greater economic benefits.
